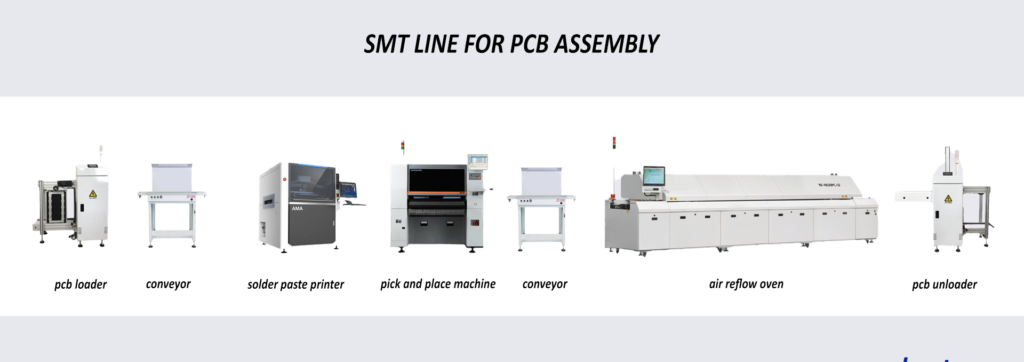

SMT LINE

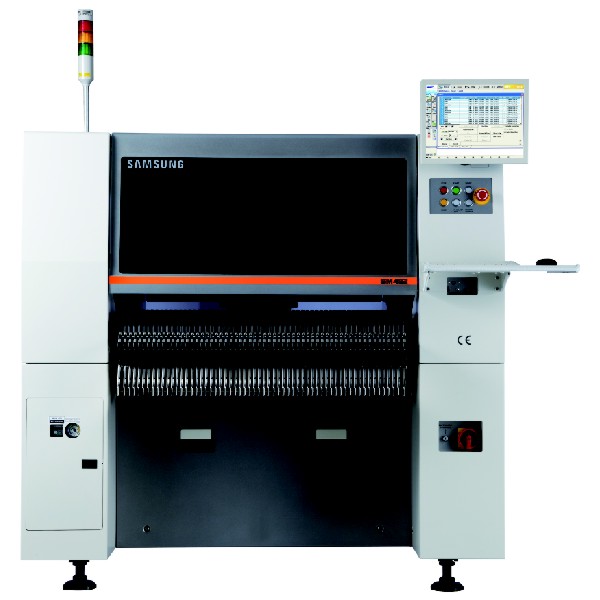

HANWHA SM481 PLUS PiCK and Machine
| CPH (Optimal) | 40’000 |
| Smallest Component (Imperial) | 01005 |
| Smallest Component (Metric) | 0.4mm x 0.2mm |
| Largest Component Handling | 55mm square, 75mm long connector |
| Component Height Maximum | 15mm |
| Placement Accuracy | ±40um |
| PCB Size (Maximum) | 460 x 400mm |
| PCB Size (Minimum) | 50mm x 50mm |
| PCB Size (Optional) | 1500mm x 460mm |
| Feeder Capacity (8mm) | 120 |
| Gantry Type | Single (10 Spindles) |
| Conveyor Type (Standard) | 3 Stage (Single) |
| Conveyor Type (Optional) | N/A |
| Alignment Type | Flying Vision + Stage Vision |
| Feeder Type | Pneumatic + Electric |
| Gripper Use | N/A |

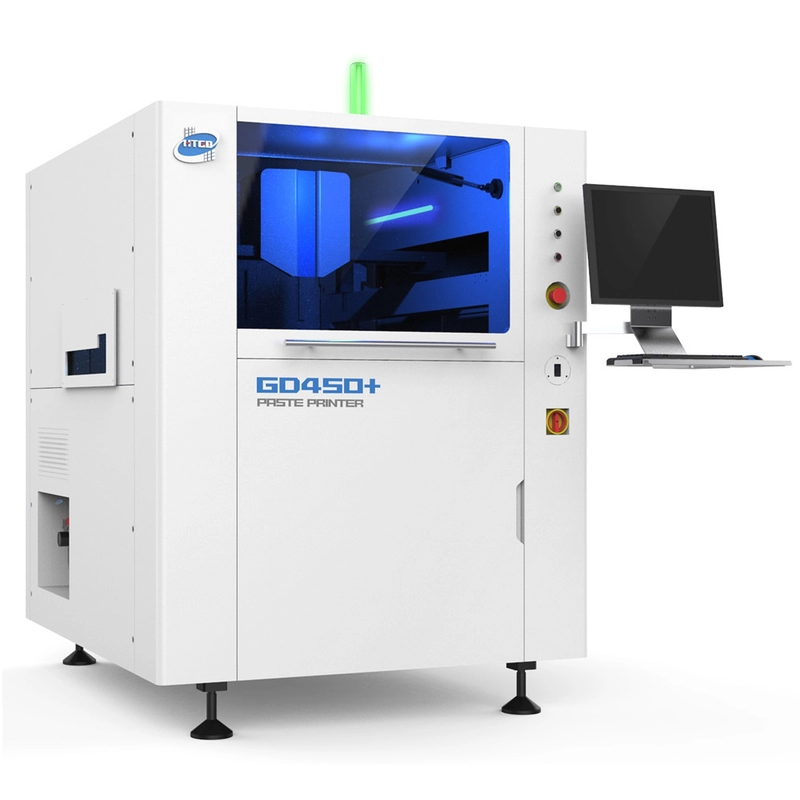

Automatic Inline SMT Stencil Printer DG450+
Max PCB size (X x Y): 450mm x 350mm
Voltage: 220V
Dimension: L (1140mm) x W (1400mm) x H (1480mm)
Weight: 1000Kg
Product description: Full Automatic Inline SMT Stencil printer GD450+, Sold big amount in the Market, Good quality is already certificated.
Lò hàn reflow jaguar m6
